Trapezoidal High Corrugated Resin Roof Sheet

The Trapezoidal Roof Sheet is engineered for demanding architectural and industrial applications, combining the strength of a Trapezoidal High Corrugated Roofing Sheets profile with the durability of a Trapezoidal UPVC Roof Tile structure. This Corrugated Trapezoidal Plastic roof solution offers excellent load-bearing capacity, weather resistance, and long service life, making it ideal for factories, warehouses, and commercial buildings that require reliable Trapezoidal UPVC Roofing Sheets with consistent performance under harsh environmental conditions.

PVC Corrugated Panels or PVC Liner Panels, are lightweight, durable corrugated panels that are ideal for agricultural and industrial building applications. These sheets are impact resistant, rust proof, and non-flammable. No special equipment is required for installation; panels can be cut using basic woodworking tools. With a gloss white finish and smooth surface for easy cleaning, JBE'S PVC Liner Panels are an economical alternative to metal.

    description1

    description2


    01/01
    01/01
    01/01
    01/01

    Product Parameter

    SKU

    JBE 1050-002/022

    Thickness

    1.5-3.0mm

    Overall Width

    1050mm

    Effective Width

    980mm

    Wave Height

    40mm

    Wave Distance

    245mm

    Small Rib Hight

    150mm

    Max Length

    11800mm

    Purlin Span

    600-800mm

    Slope

    10-45°

    Overlapping

    200-400(mm)

    Mass Per Unit Area

    2.0mm(T)=4.15kg/m2

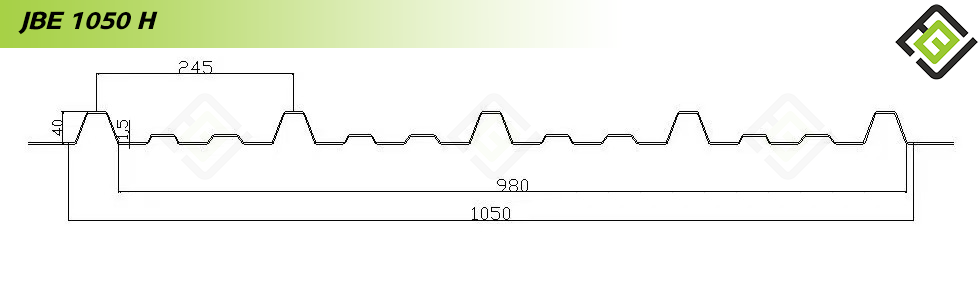

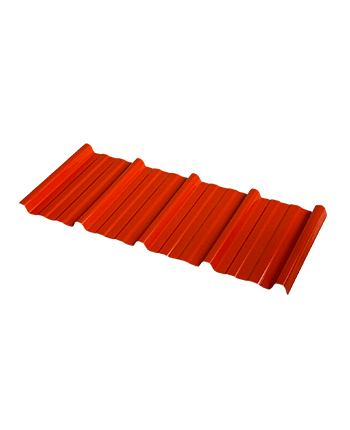

    Corrugated Trapezoidal Plastic roof

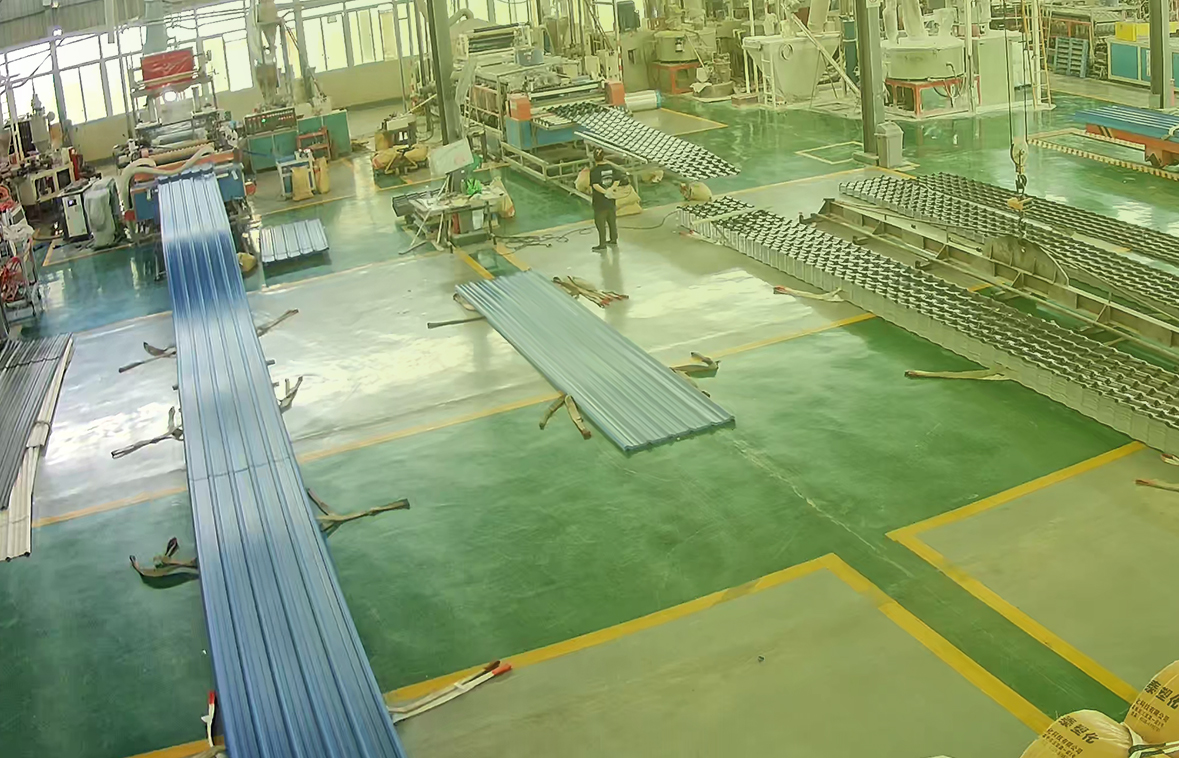

    JBE_pvc R panel manufacturer
    companay

    JBE crafts its ASA Synthetic Resin Roof Tile with a focus on three core pillars

    1. Premium Material Composition: The product is constructed using ultra-high weathering engineering resin (ASA) as the surface layer, backed by a rigid PVC basematerial, ensuring superior durability.

    2. Substantial Production Capacity: Operating over 10 production lines, JBE achieves a daily outputof 70,000 square meters of roofing tiles and an annual sales volumeof 60,000 tons, demonstrating robust manufacturing scale.

    3. Integrity-Driven Management: Adhering to honest business principles, the company commits tousing 100% virgin materials in all products and maintains trust worthy certifications from various recognized organizations.

    Application

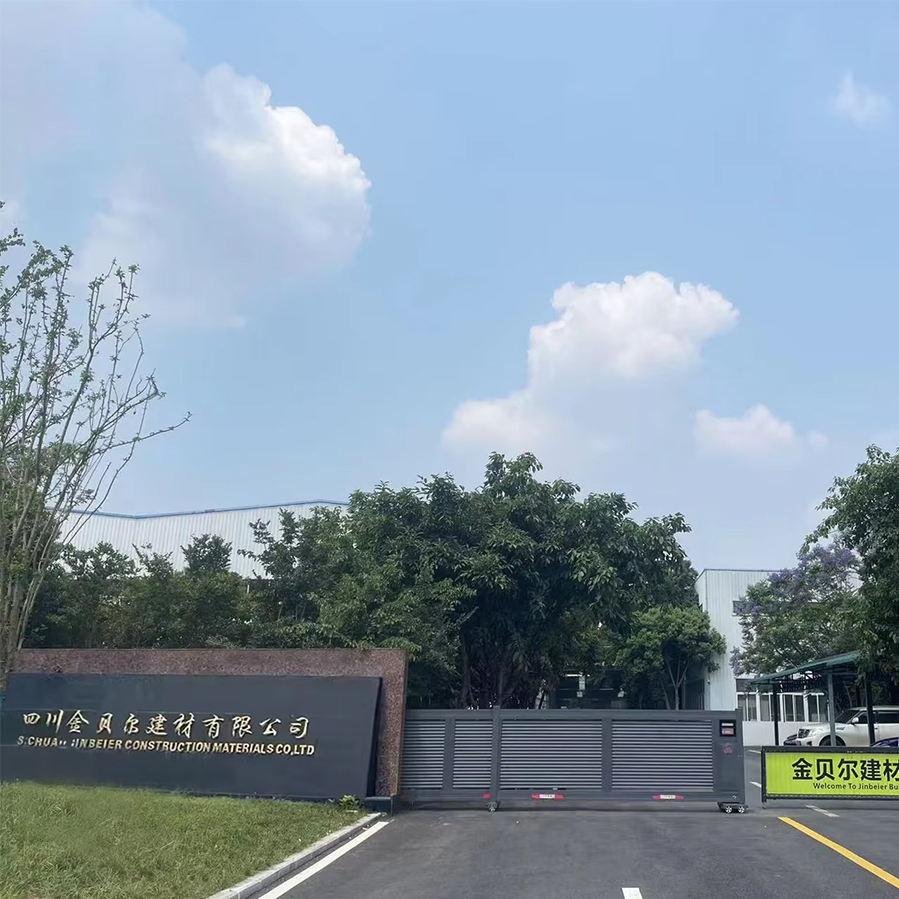

    Pvc R panel manufacturer2

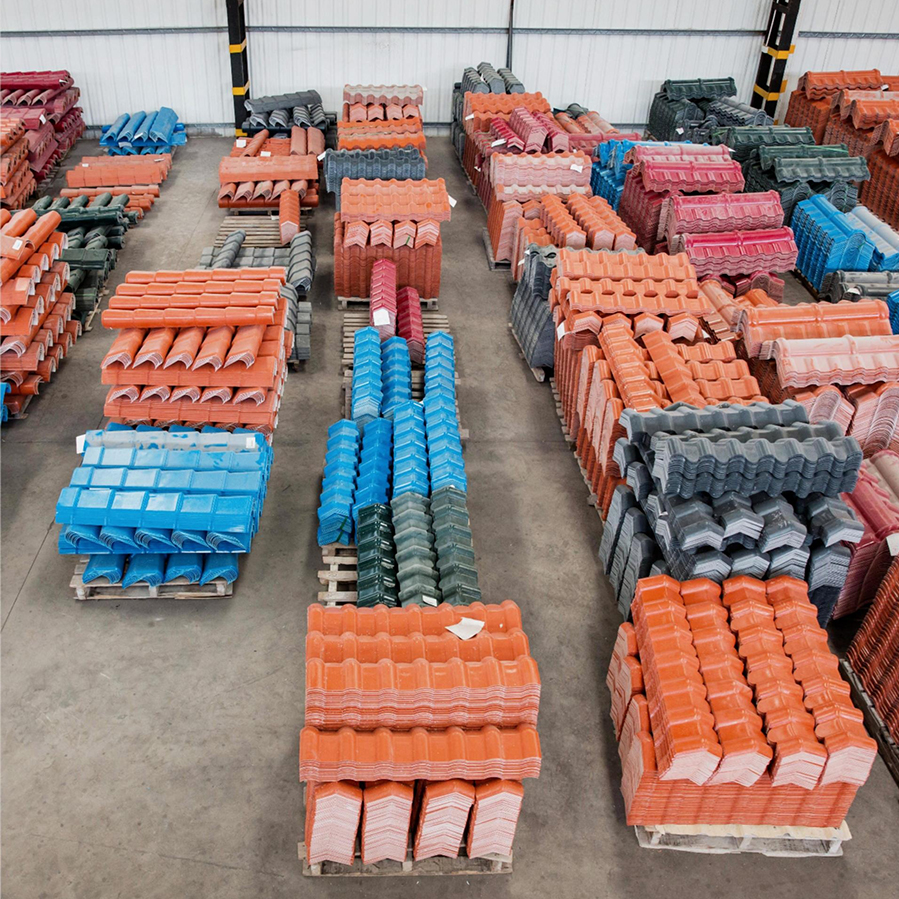

    pvc roofing sheet warehouse

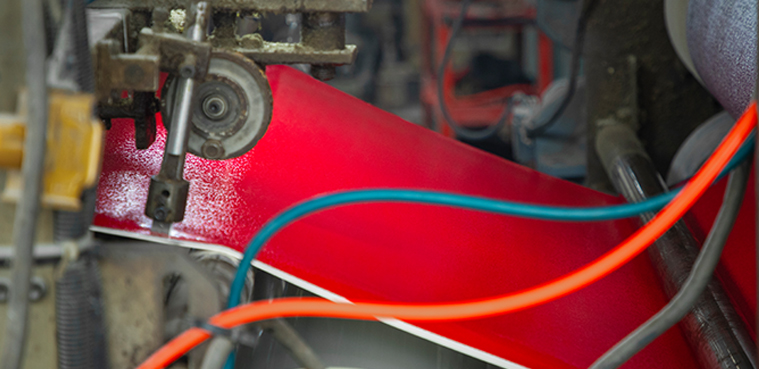

    PLASTIC R panel manufacturing1
    1 PVC Ridge Cap for IBR  Box Rib Roofing Panels

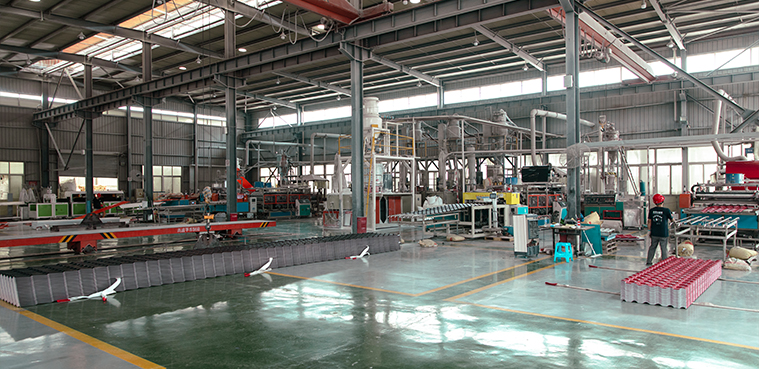

    JBE_pvc R panel sheet manufacturer

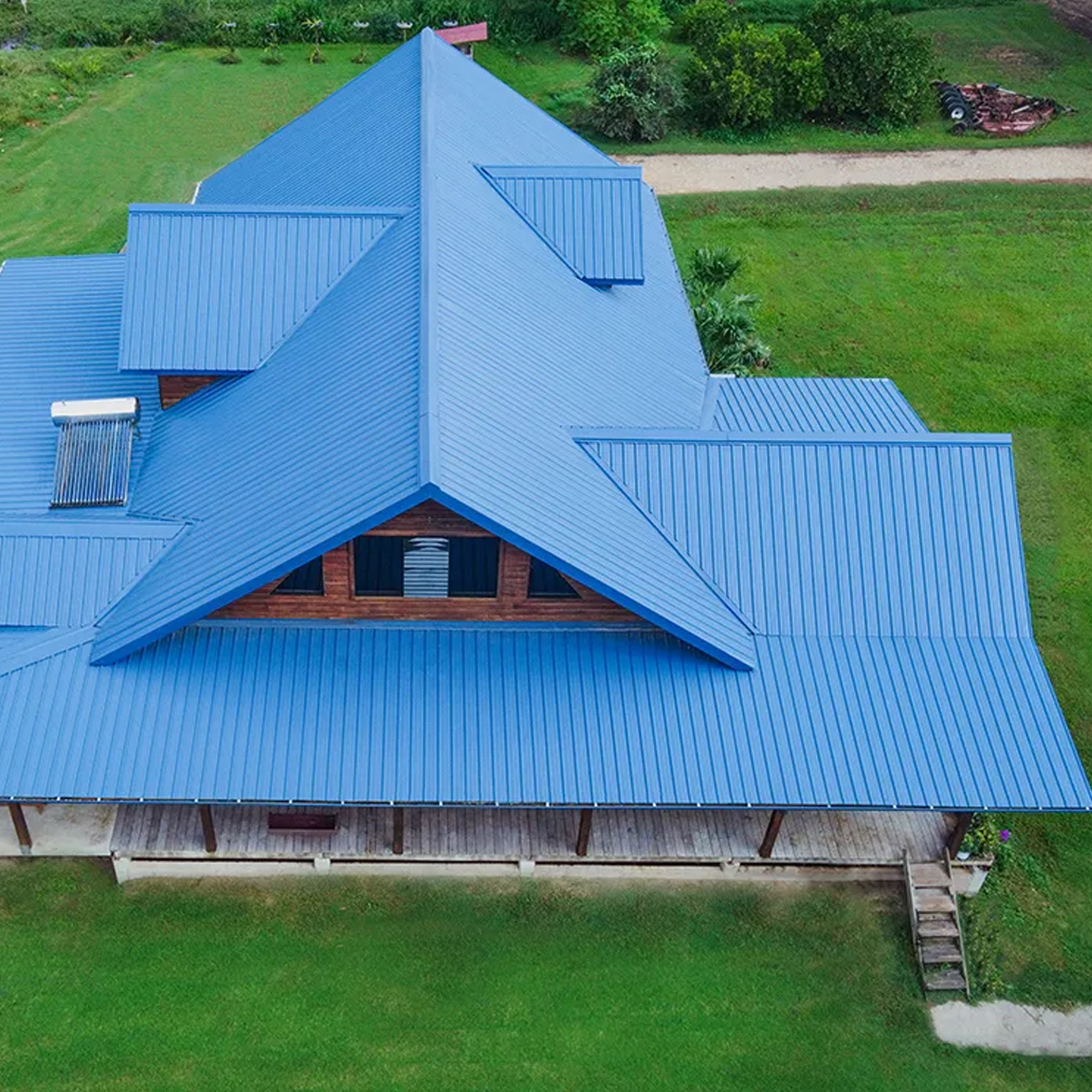

    R panel PVC roofing material
    design

    The Synthetic Roof Tiles get the excellent hallmark from its advanced material composition and design

    A top ASA layer for UV and weather resistance, a PVC core for strength, and a bottom layer for toughness. JBE’s ASA PVC Synthetic Resin Roof Tiles are versatile for villa roofing, residential houses, gardens, factories, warehouses, apartments, hotels, and prefab structures. They perform well in converting flat roofs to sloped ones and in regions with corrosive environments, providing a cost-effective alternative to traditional clay or metal roofs.

    Contact us

    Description

    JBE 1050 is a high-strength PVC corrugated panel that is long-lasting, cost effective, and simple to install and maintain. Ideal for a broad range of agricultural, commercial, and industrial applications, including: drive sheds, warehouses, public bathrooms and showers, garages, agricultural pole barns and facilities, horse stables, and dog kennels.  corrugated PVC panels can be used for ceiling or wall applications.

    Made from ASA Synthetic Resin, JBL'S PVC corrugated panels are significantly thicker, offer superior rigidity, and provide more stability compared to other ‘like’ corrugated PVC panels. These high-performance PVC panels are a great alternative to steel panels!

    Ideal for a broad range of agricultural, commercial, and industrial applications, including: drive sheds, warehouses, public bathrooms and showers, garages, agricultural pole barns and facilities, horse stables, and dog kennels.  corrugated PVC panels can be used for ceiling or wall applications.

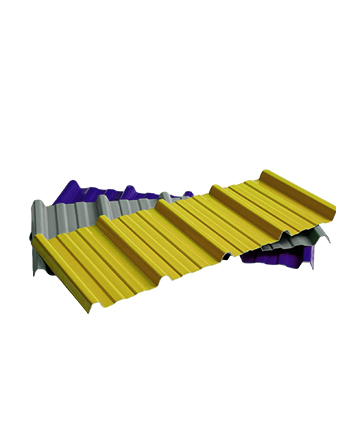

    PVC Panel trapezoidal High wave

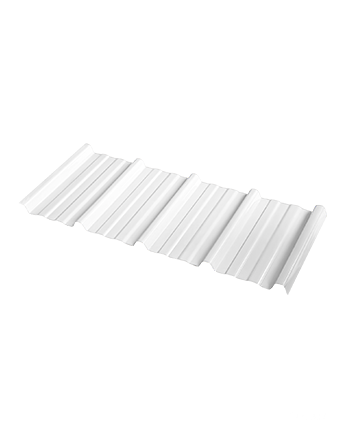

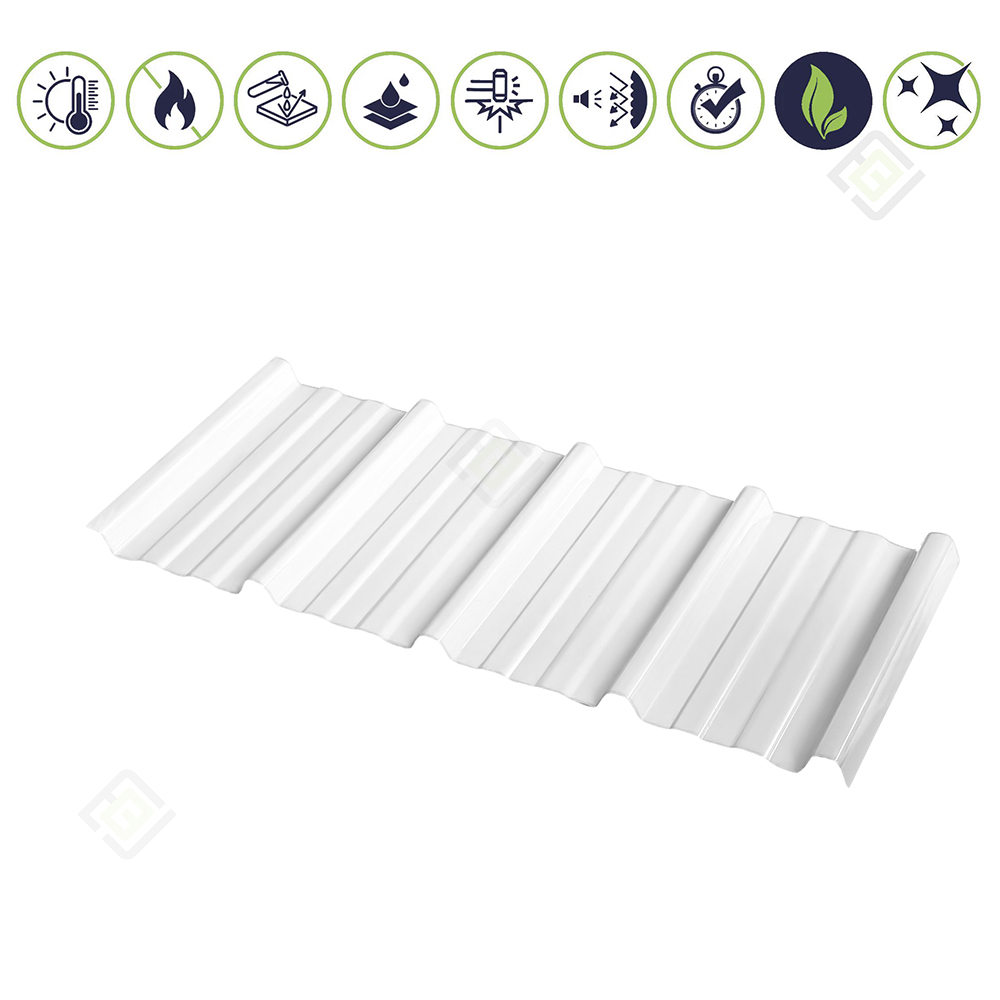

    Trapezoidal High Corrugated Resin Roofing white

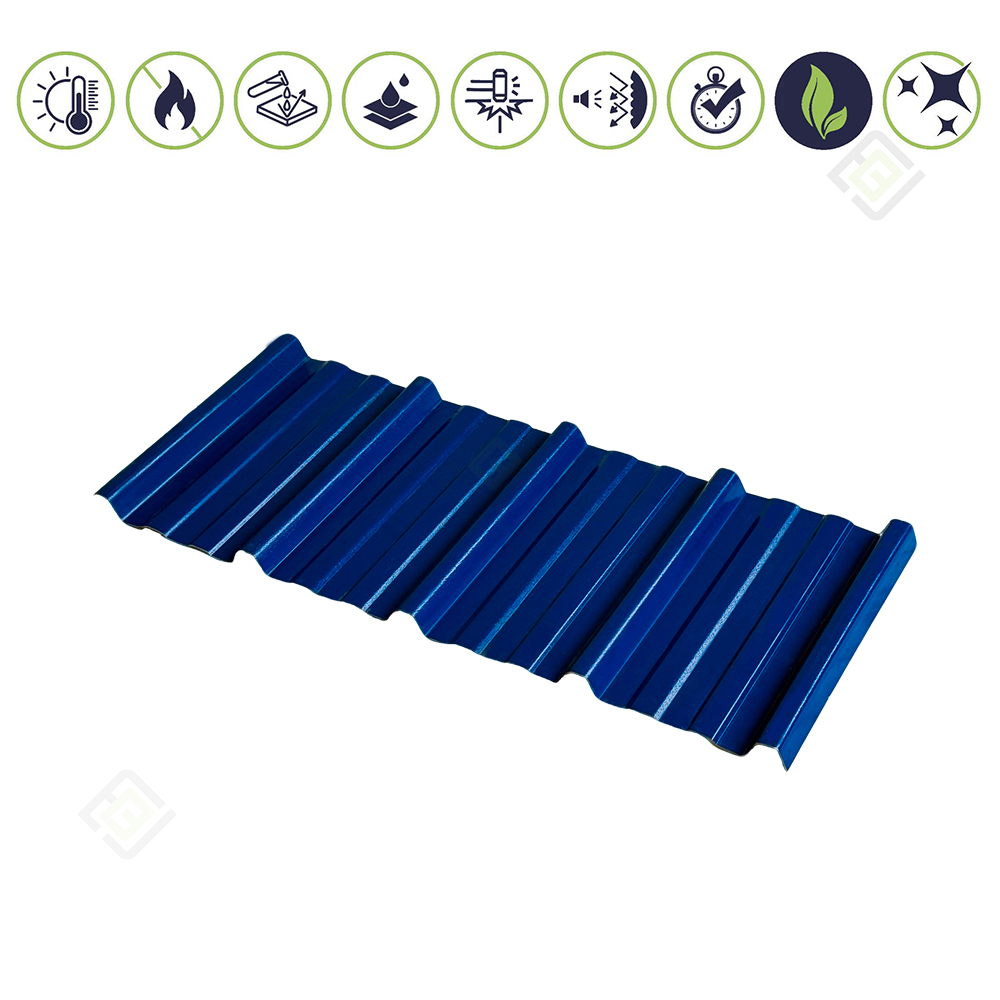

    Trapezoidal High Corrugated Resin Roofing blue

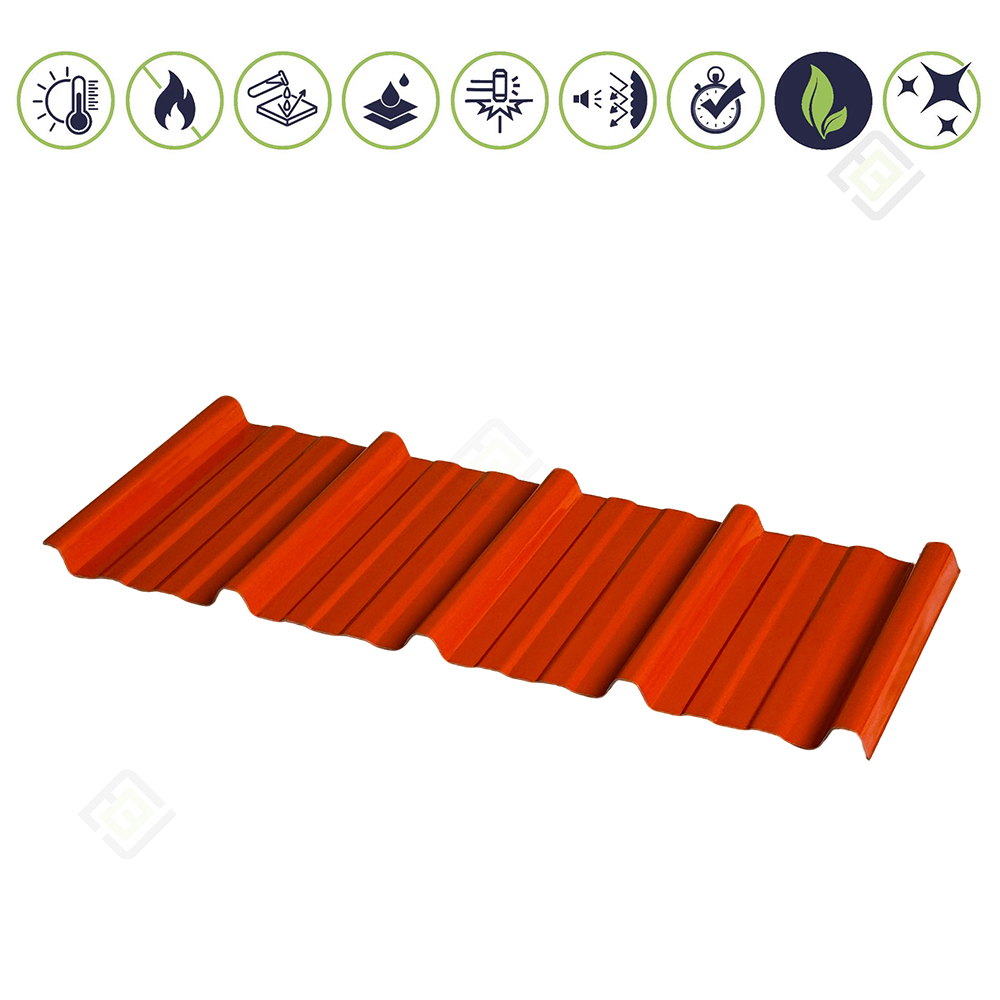

    Trapezoidal High Corrugated Resin Roofing orange

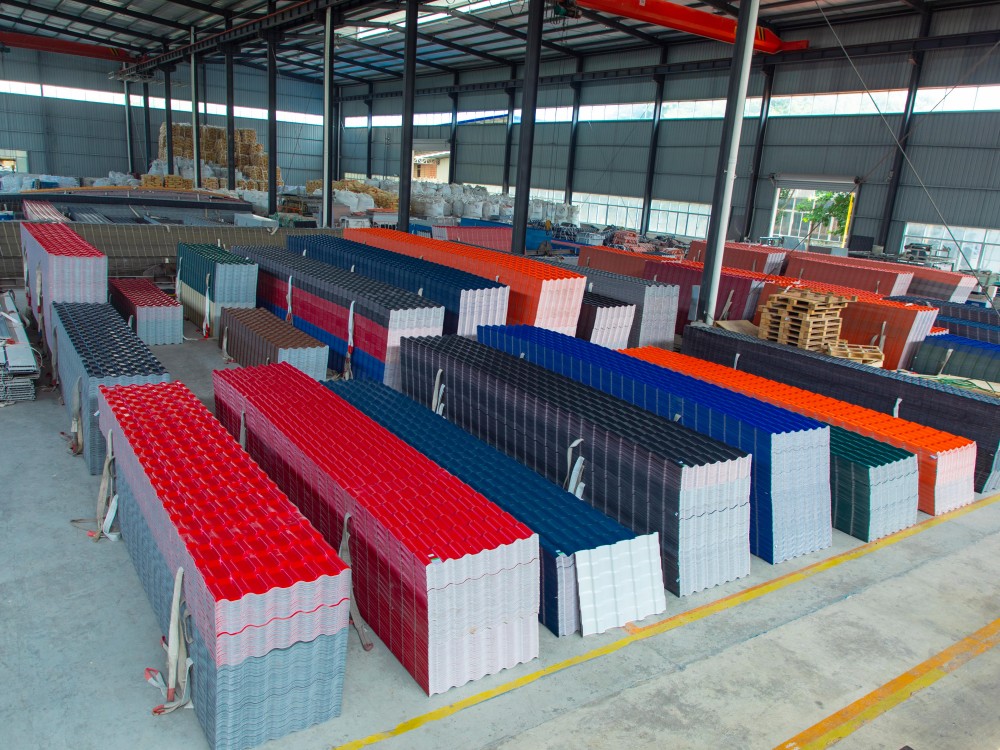

    Trapezoidal High Corrugated Resin Roof Sheet05

    Why Synthetic PVC Roof Product

    If you are looking for reliable Synthetic PVC Roofing Sheets, feel free to contact our team for more product information and quotations.
