UPVC Synthetic Resin Low Wave Roof & Wall Panel

JBE’s Synthetic Resin Wall & Ceiling Panel (Low Wave) is manufactured from high-performance ASA + PVC composite material, combining the excellent weather resistance of ASA with the structural strength and durability of PVC.

Designed for both interior and exterior applications, this panel provides a modern low-wave profile with enhanced mechanical stability and aesthetic appeal.

    description1

    description2


    01/01
    01/01
    01/01
    01/01

    Product Parameter

    SKU

    JBE1150-001/011

    Thickness

    1.4-3.0(mm) or Customized

    Overall Width

    1150mm

    Effective Width

    1100(mm)

    Purlin Distance

    600-800mm

    Fireproof

    B1

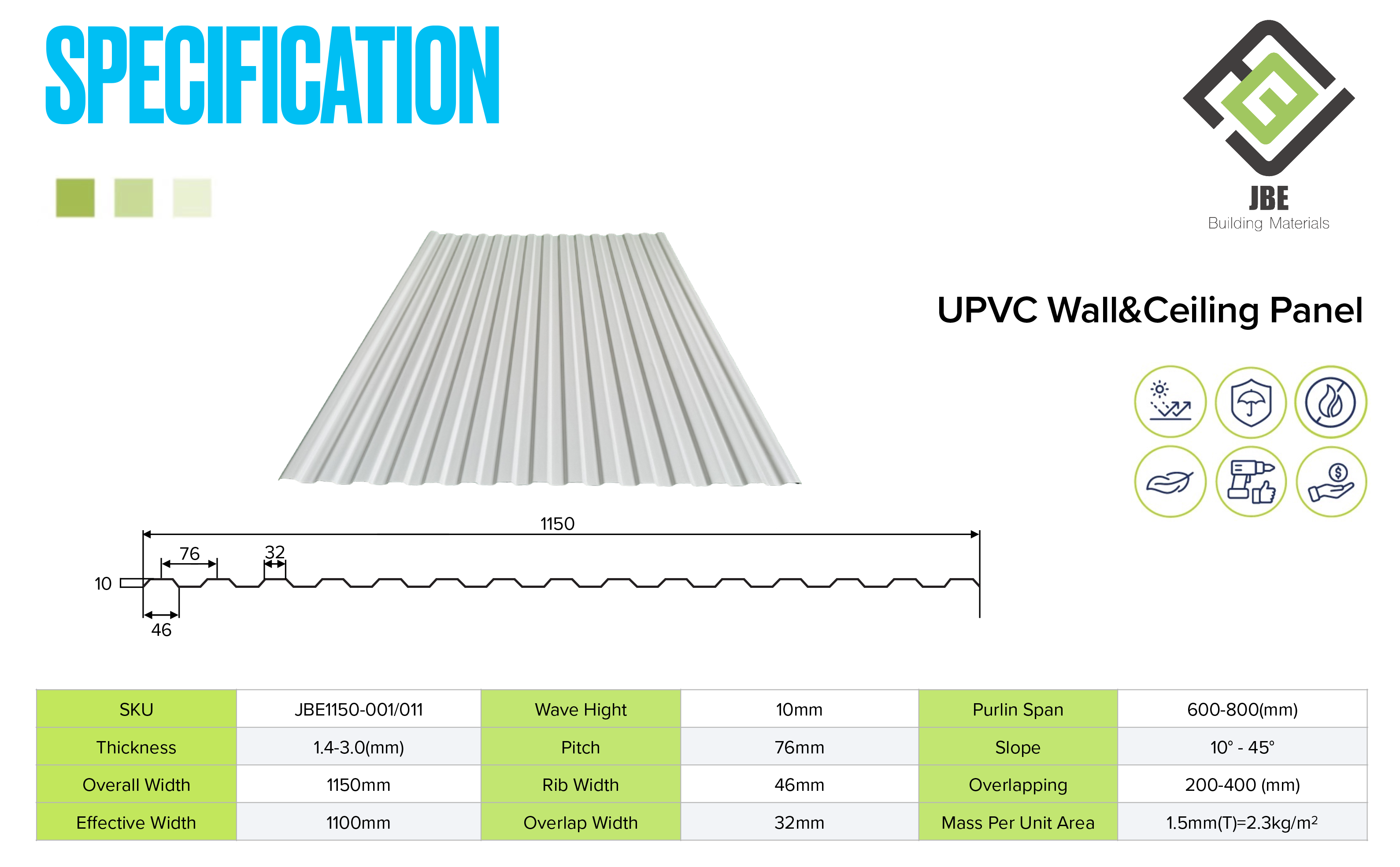

    spec UPVC Wall&Ceiling Panel
    JBE crafts its ASA Synthetic Resin Roof
    companay

    JBE crafts its ASA Synthetic Resin Roof Tile with a focus on three core pillars

    1. Premium Material Composition: The product is constructed using ultra-high weathering engineering resin (ASA) as the surface layer, backed by a rigid PVC basematerial, ensuring superior durability.

    2. Substantial Production Capacity: Operating over 10 production lines, JBE achieves a daily outputof 70,000 square meters of roofing tiles and an annual sales volumeof 60,000 tons, demonstrating robust manufacturing scale.

    3. Integrity-Driven Management: Adhering to honest business principles, the company commits tousing 100% virgin materials in all products and maintains trust worthy certifications from various recognized organizations.

    Application
    UPVC Synthetic Resin Low Wave Roof & Wall Panel application
    UPVC Synthetic Resin Low Wave Roof & Wall Panel application02
    application (6)
    application (1)
    application (5)
    application (2)
    design

    The Synthetic Roof Tiles get the excellent hallmark from its advanced material composition and design

    A top ASA layer for UV and weather resistance, a PVC core for strength, and a bottom layer for toughness. JBE’s ASA PVC Synthetic Resin Roof Tiles are versatile for villa roofing, residential houses, gardens, factories, warehouses, apartments, hotels, and prefab structures. They perform well in converting flat roofs to sloped ones and in regions with corrosive environments, providing a cost-effective alternative to traditional clay or metal roofs.

    Contact us

    Description

    UPVC Synthetic Resin Low Wave Roof & Wall Panel is a high-performance roofing and wall cladding material.

    Designed with a low-wave profile, it offers excellent structural stability, weather resistance, and modern architectural aesthetics for both roofing and wall applications.

    The low-wave design not only enhances water drainage efficiency but also provides a sleek and clean appearance suitable for modern construction projects.

    With a standard overall width of 1015mm and effective installation width of 960mm, the panel is optimized for efficient coverage and reduced installation time.

    Available in thicknesses ranging from 1.2mm to 3.0mm, as well as customized specifications, this product can meet diverse structural and environmental requirements.

    Twinwall Hollow PVC Roof Sheet.jpg
    Twinwall Plastic Roofing Sheet.jpg
    Twinwall PVC Plastic Roofing Sheet.jpg

    Why Synthetic PVC Roof Product

    If you are looking for reliable Synthetic PVC Roofing Sheets, feel free to contact our team for more product information and quotations.
